Name: 2021 Year SY360e Used Rotary Drilling Rig Quality You Can Depend on
Brand: SANY
Price: 230000.00 USD

Brand Name : SANY

Model Number : 360e

Certification : SGS

Place of Origin : China

MOQ : 1

Price : $230000.00

Payment Terms : L/C, D/A, D/P

Supply Ability : negotiable

Delivery Time : 8 work days

Packaging Details : bare bones

Drill Hole Diameter : 250-300mm

Bit Type : Diamond Bit

Type : Crawler

Transport Height : 3745mm

Machine Weight : 120000kg

Warranty : 1 Year

Hydraulic Cylinder Brand : Original

Hydraulic Pump Brand : Original

Hydraulic Valve Brand : Original

Working hours : 4000

Contact Now

Description		Unit	360e
Max. drilling diameter		mm	2500
Max. drilling depth		m	100
Working condition (L × W × H)		mm	11000×4800×24586
Transport condition (L × W × H)		mm	17380×3500×3810
Weight of overall unit (standard configuration, excluding drilling tool)		t	92
Engine	Model		ISUZU 6WG1
Engine	Rated power/speed	kW	298
Rotary drive	Max. torque	kN.m	360
Rotary drive	Rotational speed	r/min	5~25
Pull-Down Cylinder	Max. pull- down piston push	kN	290
	Max. pull- down piston pull	kN	335
	Max. pull- down piston stroke	m	6
Main Winch	Max. pulling force	kN	360
Main Winch	Max. line speed	m/min	75
Auxiliary Winch	Max. Pulling force	kN	100
Auxiliary Winch	Max. line speed	m/min	65
Undercarrige	Max. traveling speed	km/h	1.5
	Max. grade ability	%	35
	Min. Clearance	mm	445
	Track shoe width	mm	800
	Distance between tracks	mm	3500 ~ 4800
Hydraulic System	Working pressure	Mpa	35

3745mm

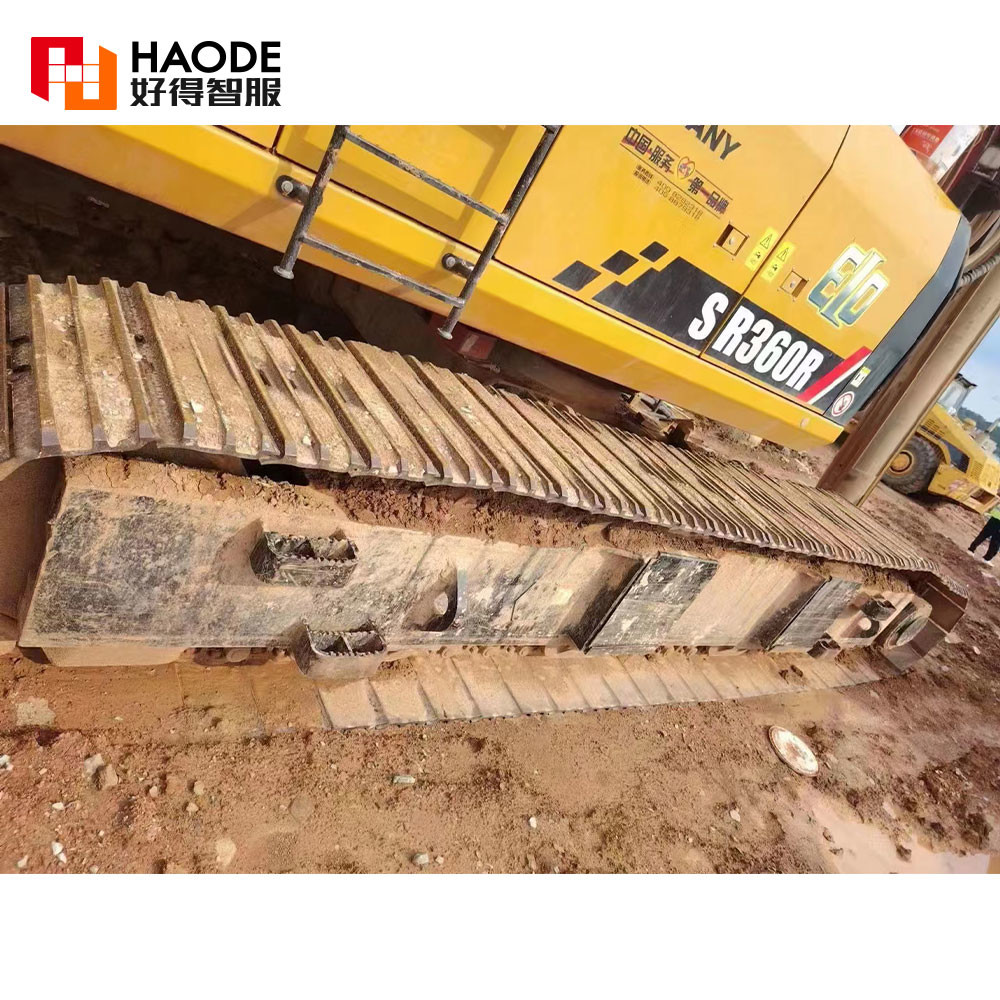

2021 Year SY360e Used Rotary Drilling Rig Quality You Can Depend on Images
